New mini crawler digger X90-E with high quality engine and hydraulic pump

FOB Reference Price:Get Latest Price
$42,700.00 - $46,700.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
0.42 cbm
Rated Speed:
3 km/h
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
XINIU/RHINOCEROS
Model Number:
X90-E
Certification:
CE&ISO
Moving Type:
Crawler Excavator
Maximum Digging Height:
6600mm
Maximum Digging Depth:
4600mm
Machine Weight:
8000kg
Max Digging Radius:
6640mm
Pilot pump:
TOSHIBA / SKS
Hydraulic main pump:
TOSHIBA/SKS
Engine type:
YANMAR(4TNV-98T)
Ground Clearance:
300mm
Hydraulic System Flow:
160L/min
Boom length:
3800 mm
arm length:
1824mm
Travel Motor:
EATON
Power:
57.5kw
Cab Dimension:
1500x1000x1650mm
After-sales Service Provided:
Engineers available to service machinery overseas
Operating Weight:
8000kg
Supply Ability
Supply Ability:
60 Unit/Units per Month
Packaging & Delivery
Packaging Details
10 days
Port
Qingdao,Tianjin ,Shanghai or according to your request
Lead Time :
one 40HQ load two units

                New mini crawler digger X90-E with high quality engine and hydraulic pump

Product Description

Main features of mini crawler digger :

9ton, Yanmar(4TNV-98T) engine, 57.7KW, Germany MOIFLUID main pump/valve, Germany STAUFF pilot pump, Electromagnetic oil source system,

USA EATON swing motor, traveling motor, Joystick, Italy Manuli hydraulic pipe, USA Parker sealing parts, A/C cab,English monitor, Radio, USB, 0.35m3 bucket, Overall dimension: 7200x2370x2750 mmNew cabin design for all the cabin parts

Mini Crawler Digger Main specification:



MAIN DIMENSIONS

UNIT

X90-E

Operating Weight

kg

9000

Overall Dimension

mm

7200 x2370x2750

Cab Dimension

mm

1500x1000x1650

Bucket Capacity

cbm

0.42

SYSTEM CONFIGURATION



Engine Type



YANMAR(4TNV-98T)

Rated Power/Speed

kw

57.7

No. of Cylinders/Type



4 cylinder / in line

Starting Type



Electric 12V

Hydraulic Main Pump



TOSHIBA / SKS

Hydraulic System Pressure

MPa

28

Hydraulic System Flow

L/min

160

Pilot Pump



TOSHIBA / SKS

Valve



TOSHIBA / NORTH

Swing Motor



EATON

Max Swing Speed

r/min

10.5 r/min

Travel Motor



EATON

Speed

km/h

H: 4.5km/h ; L: 3.0/km/h

Bucket Digging Force

Kn

63

Arm Digging Force

Kn

46

Working Fuel Consumption

L/h

8.16

Diesel Oil Tank Capacity

L

240

hydraulic Oil Tank Capacity

L

130

OPERATION RANGE



Boom Length

mm

3800

Arm Length

mm

1824

Radius to Rear End

mm

1880

Ground Clearance

mm

300

Blade Dimension

mm

2320x400

Max Digging Height

mm

6600

Max Dumping Height

mm

4600

Max Digging Depth

mm

4430

Max Digging Radius

mm

6640



Standard Machine With A/C

A/C

Standard

Packing Way



2 unit in a 40HQ

Passed Certificates



CE ISO

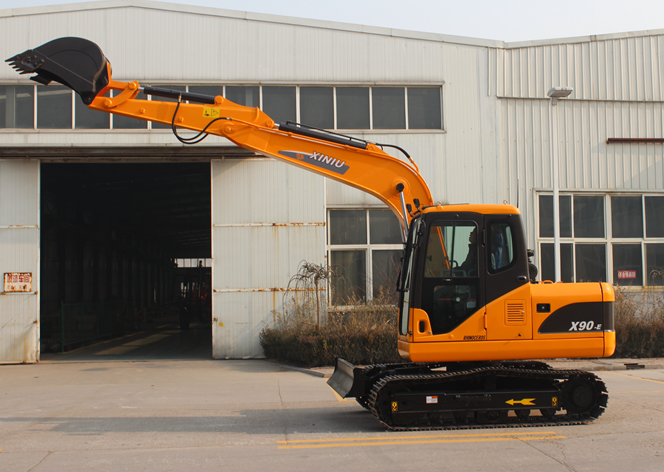

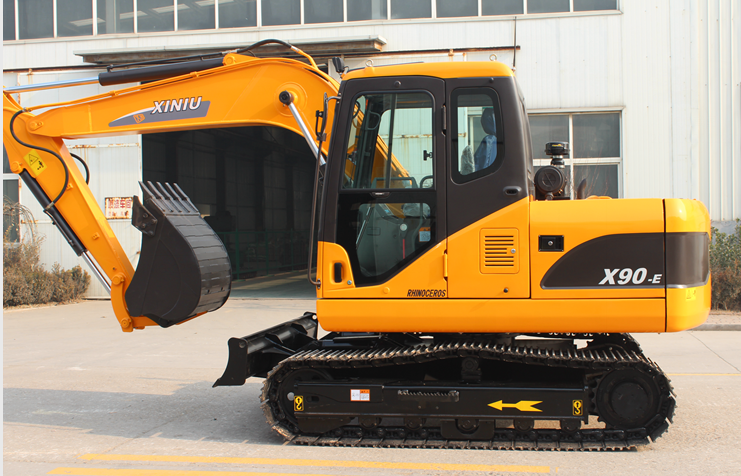

mini crawler digger view:

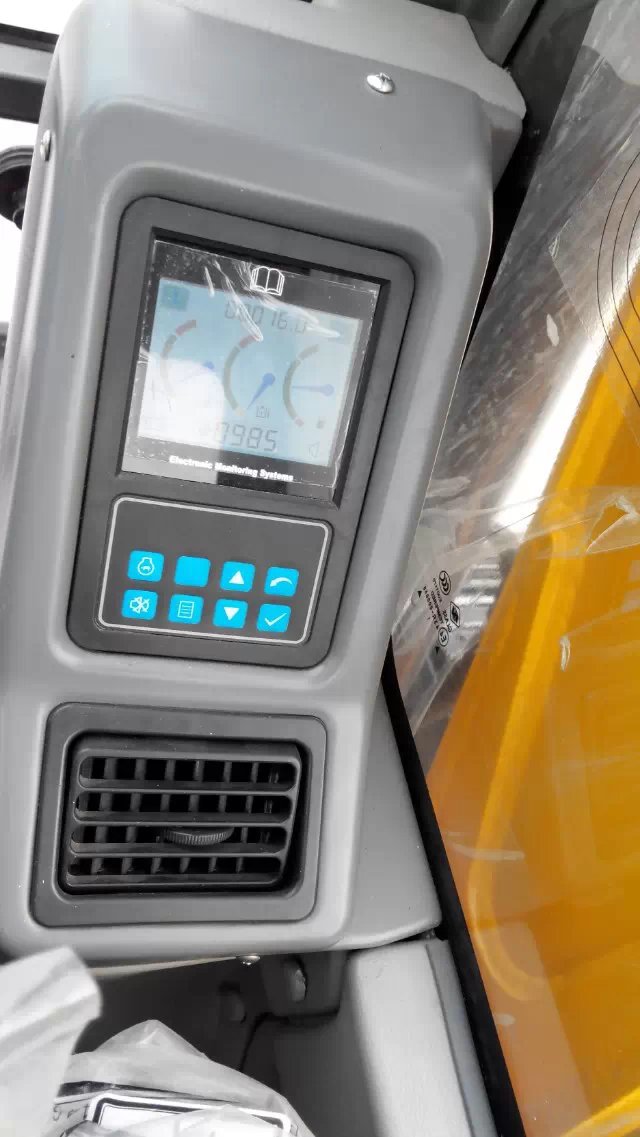

The Detail show :

psb (11).jpg



psb (10).jpg

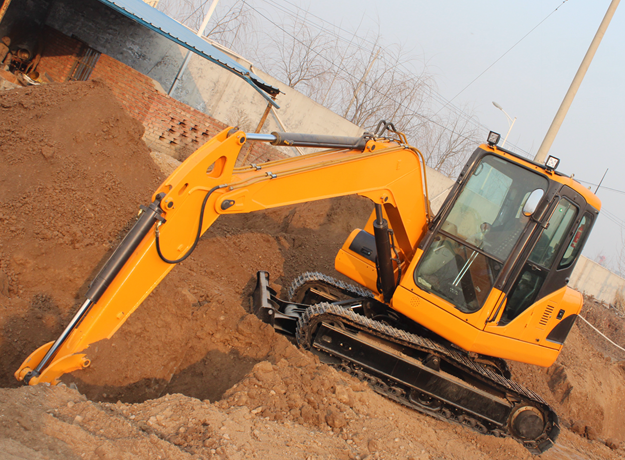

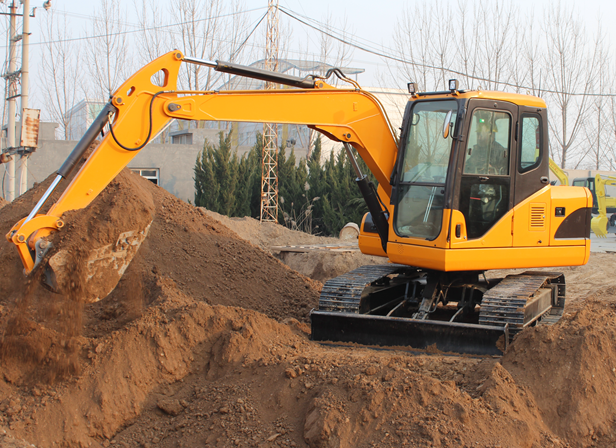

The photos of mini crawler digger working :


Packaging & Shipping

Container loadeing

1. Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.

2. Spare parts or wearing parts will be packed in wooden box or paper carton.

3. Standard shipping method is by container, most of our excavator and backhoe loader can be loaded in container.

Our Services

We try our best to making your experience with us a positive one and therefore we stand behind everything we sell.

This item comes with 1 years or 1200 working hours manufacturers warranty whichever comes first.

Pre-sale service:
Call us no matter cooperate or not. you may get unexpected harvest. We would discuss the future development of this line together according to many years experience on selling and producing which could help to enlarge the profits and improvement for both of us.
Studying the customer's requirement carefully, we would help customer to choose the most suitable machine and will offer you the relative samples and suggestions promotely and considerately, according to customer's production scale and technical requirements.

Selling service:
Promotely and paintely answer customer's questions. put our heart and soul into service for customer, including supply some suggestions on choosing the place, how to save cost, and play the maxium value of our machine

After-sale Service:

1. our technicians will provide on-site service to customers in china. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.

2. within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.

3. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.

4. our company will research the staffs service attitude aperiodically to improve the service satisfaction.

Certifications

CE ISO

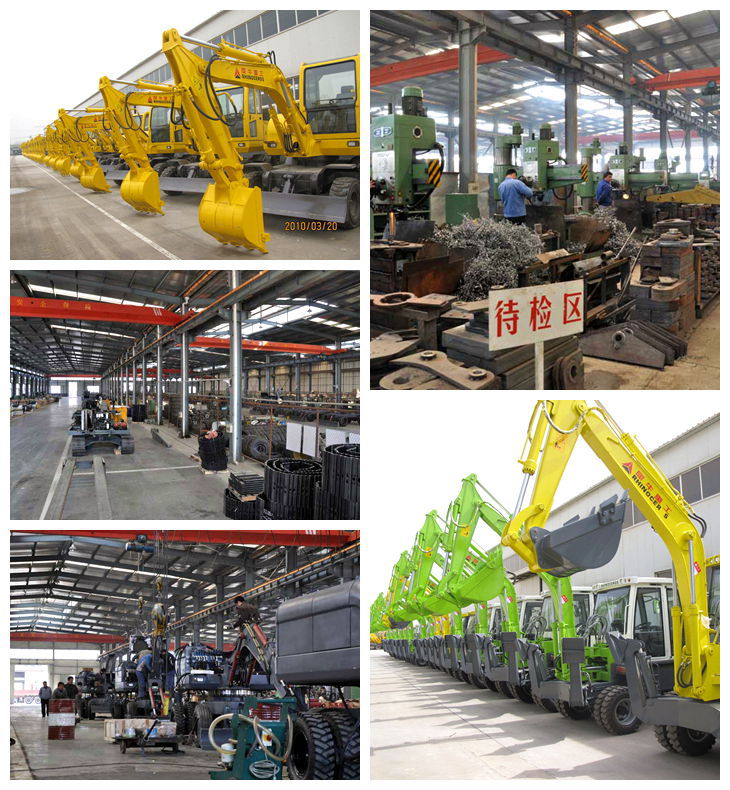

Company Information

our company is a professional manufacturer of construction machinery and concrete machinery in China. The products cover Backhoe loader ,crawler excavator ,wheel excavator ,concrete pump,Sanitation truks ,low-speed 4*4 dump trucks,with an annul production of 100000 units . Our company has established over 100 sales service branches in China and abroad.We export to more 30 countries and regions all over the world,Southeast Asia,Middle Asia,Middle East ,Africa ,West Europe and America,etc


Why choose us ?

1.competitive price with perfect quality

2.Quick delivery time

3.The most influential manufanture in chain

4.Quick and easy After-sales service

If the products can satisfy your need ,pls free to contact me so that we can discuss the detail information,thank you .

Jessie

Trademanager:cn1515268718thll

Wechat or QQ i:2334658622

QQ:969426838

Skype:jessie.du40

WhatsApp:18769517398

Web:http://en.sdxiniu.com
